Products info.

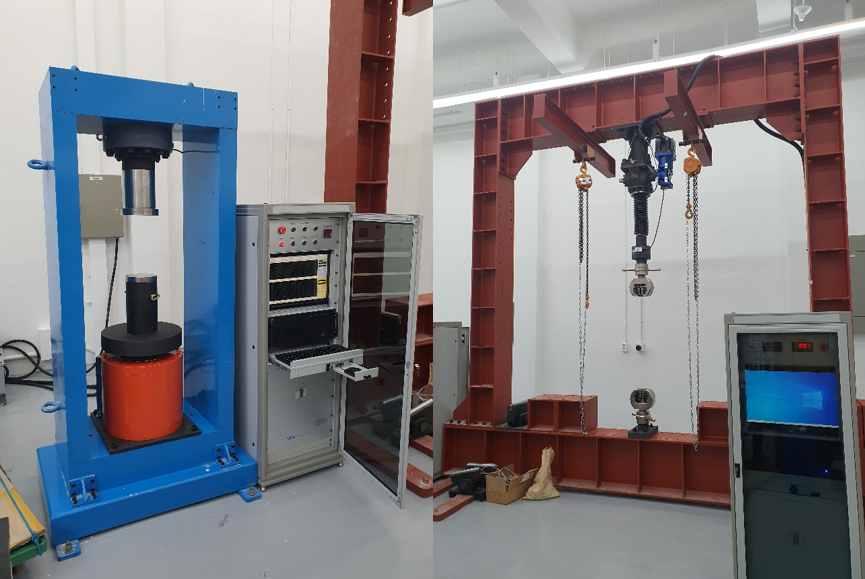

복합물성시험기
A. Bending & Tensile Tester
1. Loading Frame
- Capacity : 30tonf
2. Servo Screw Jack Loading System
- Capacity : ±30tonf
- Stroke : ±150mm(Total 300mm)
- 변위 제어 : 0.5~50mm/min(초저속 제어)
- 감속기 : 웜기어 방식
- Servo Motor, Driver etc : 5kW, Mitsubishi - Load Cell : ±30tonf
- Displacement Detector : Encoder
- Control Rack & Electric Panel & PC
- Control & DAQ Program
B. Compression Tester
1. Main Frame & Hydraulic Actuator System 1set ￦40,000,000
- 저온 챔버 사용 Type
- Frame Capacity : 250tonf
- Hydraulic Jack Capacity : 200tonf / 100stroke
- 적용 공시체 : 100×200, 150×300
- 변위제어/하중제어 : Servo Control - Working Pressure : 210 kgf/㎠
- Compression Platen : 170, Hemispherical Type
- Distance Pieces : 170×30t, 1EA
: 170×50t, 2EA
2. Hydraulic Power Supply
- Motor & Pump : 3HP
- High Filter : 10㎛
- Cooling System : Air
- Working Pressure : 210 kgf/㎠
- Safety Devices : Level, Temp, Contamination
- Servo Valve & Block : Moog G761
- Hose & Coupler
3. Servo Controller & Sensors 1set ￦7,900,000
- Electric Panel & Servo Controller & PC System
- Control & Data Acquisition Program
- Load Cell & D/T : 200tonf / 100mm
4. Extensometer
- Epsilon, 철근 인장시험용(지간거리 200mm)
5. Compressometer
- CM-10
- 적용 공시체 : 100×200
C. 높이 조절용 저온 챔버
1. 저온 Chamber
- 내부 크기 : 300×400×450(H)mm
- 온도 범위 : -60~100℃
- 재질 : SUS304 1.0t(내부), SS400 1.2t Powder Coating
- Temp’ Controller : Digital Touch Screen TD510
- Temp’ Sensor : PT100
- 적용 실험체 : 100×200, 150×300(압축) & 철근(인장)
- 챔버용 가압지그 : 160×2EA, 110×2EA
- 챔버 상하부 홀가공품 : MC, 50, 130, 180
- Heater : Kanthal Wire Heater 1kW×2EA
- Observation Window & Lamp
- Insulation : Glass Wool
- Cooling Compressor : 1HP×2EA, 이온냉동
- Cooling Gas : 1차 R-22, 2차 R-23
2. Chamber 이동 및 높이조절 장치
- Main Frame :
- 저온 Chamber 거치장치
- 상하 이송용 Ball Screw & Motor
- Electric Panel
- 이동용 Caster
1. Loading Frame
- Capacity : 30tonf
2. Servo Screw Jack Loading System
- Capacity : ±30tonf
- Stroke : ±150mm(Total 300mm)
- 변위 제어 : 0.5~50mm/min(초저속 제어)
- 감속기 : 웜기어 방식
- Servo Motor, Driver etc : 5kW, Mitsubishi - Load Cell : ±30tonf
- Displacement Detector : Encoder
- Control Rack & Electric Panel & PC
- Control & DAQ Program
B. Compression Tester
1. Main Frame & Hydraulic Actuator System 1set ￦40,000,000
- 저온 챔버 사용 Type
- Frame Capacity : 250tonf
- Hydraulic Jack Capacity : 200tonf / 100stroke
- 적용 공시체 : 100×200, 150×300
- 변위제어/하중제어 : Servo Control - Working Pressure : 210 kgf/㎠
- Compression Platen : 170, Hemispherical Type
- Distance Pieces : 170×30t, 1EA
: 170×50t, 2EA
2. Hydraulic Power Supply
- Motor & Pump : 3HP
- High Filter : 10㎛
- Cooling System : Air
- Working Pressure : 210 kgf/㎠
- Safety Devices : Level, Temp, Contamination
- Servo Valve & Block : Moog G761
- Hose & Coupler
3. Servo Controller & Sensors 1set ￦7,900,000
- Electric Panel & Servo Controller & PC System
- Control & Data Acquisition Program
- Load Cell & D/T : 200tonf / 100mm
4. Extensometer
- Epsilon, 철근 인장시험용(지간거리 200mm)
5. Compressometer
- CM-10
- 적용 공시체 : 100×200
C. 높이 조절용 저온 챔버
1. 저온 Chamber
- 내부 크기 : 300×400×450(H)mm
- 온도 범위 : -60~100℃
- 재질 : SUS304 1.0t(내부), SS400 1.2t Powder Coating
- Temp’ Controller : Digital Touch Screen TD510
- Temp’ Sensor : PT100
- 적용 실험체 : 100×200, 150×300(압축) & 철근(인장)
- 챔버용 가압지그 : 160×2EA, 110×2EA
- 챔버 상하부 홀가공품 : MC, 50, 130, 180
- Heater : Kanthal Wire Heater 1kW×2EA
- Observation Window & Lamp
- Insulation : Glass Wool
- Cooling Compressor : 1HP×2EA, 이온냉동
- Cooling Gas : 1차 R-22, 2차 R-23
2. Chamber 이동 및 높이조절 장치
- Main Frame :
- 저온 Chamber 거치장치
- 상하 이송용 Ball Screw & Motor
- Electric Panel
- 이동용 Caster
전계방사전자주사현미경
- FE-Source : In-lens schottky FEG
- mage resolution : 1.5nm@30kV , 4.0nm@1.0kV
3.0nm@15kV, Probe current 1nA
- Observation mode : High Vacuum & Low Vacuum
- Image type
- HV mode : SE image & BSE image
- LV mode : BSE image
- Guide mode : OM image (Auto mode change between SEM image)
- Accelerating voltage : Max. 30kV
- Probe current : Max. 20nA
- LV pressure : 10 to 150pa
- OL Aperture : Multi hole exchange type
- mage resolution : 1.5nm@30kV , 4.0nm@1.0kV
3.0nm@15kV, Probe current 1nA
- Observation mode : High Vacuum & Low Vacuum
- Image type
- HV mode : SE image & BSE image
- LV mode : BSE image
- Guide mode : OM image (Auto mode change between SEM image)
- Accelerating voltage : Max. 30kV
- Probe current : Max. 20nA
- LV pressure : 10 to 150pa
- OL Aperture : Multi hole exchange type
핵자기공명분광 (400 MHz)
- Magnet system
- Self-shield superconducting magnet system in a standard dewar configuration (operation field at 9.4 Tesla) with bore diameter of 54 mm
- Less than 4 Hz/hr magnet field drift rate with maximum 365 days liquid helium hold time and 15 days liquid nitrogen hold time
- Magnet stray field (5 gauss) distance: 0.5 m / 1 m
- Shim / Lock System
- High accuracy digital control of r.f. generation, lock, and shim
- Self-shield superconducting magnet system in a standard dewar configuration (operation field at 9.4 Tesla) with bore diameter of 54 mm
- Less than 4 Hz/hr magnet field drift rate with maximum 365 days liquid helium hold time and 15 days liquid nitrogen hold time
- Magnet stray field (5 gauss) distance: 0.5 m / 1 m
- Shim / Lock System
- High accuracy digital control of r.f. generation, lock, and shim
탐침형 원자 현미경
(1) Scanning Probe Microscopy to measure surface characteristics such as Topography, Electrical, Magnetic properties and Scanning Thermal Microscopy(SThM)
(2) Direct Force Control Imaging (50pN or less) providing high resolution and non-destructive imaging
(3) Vertical resolution : 0.01nm or less
(4) Lateral resolution : 0.1nm or less
(5) Data pixel : Mode than 5012 x 5012 for 8 channels. or more
(6) SThM Temperature resolution : Less than 0.1℃ , depending on probe type
(2) Direct Force Control Imaging (50pN or less) providing high resolution and non-destructive imaging
(3) Vertical resolution : 0.01nm or less
(4) Lateral resolution : 0.1nm or less
(5) Data pixel : Mode than 5012 x 5012 for 8 channels. or more
(6) SThM Temperature resolution : Less than 0.1℃ , depending on probe type
